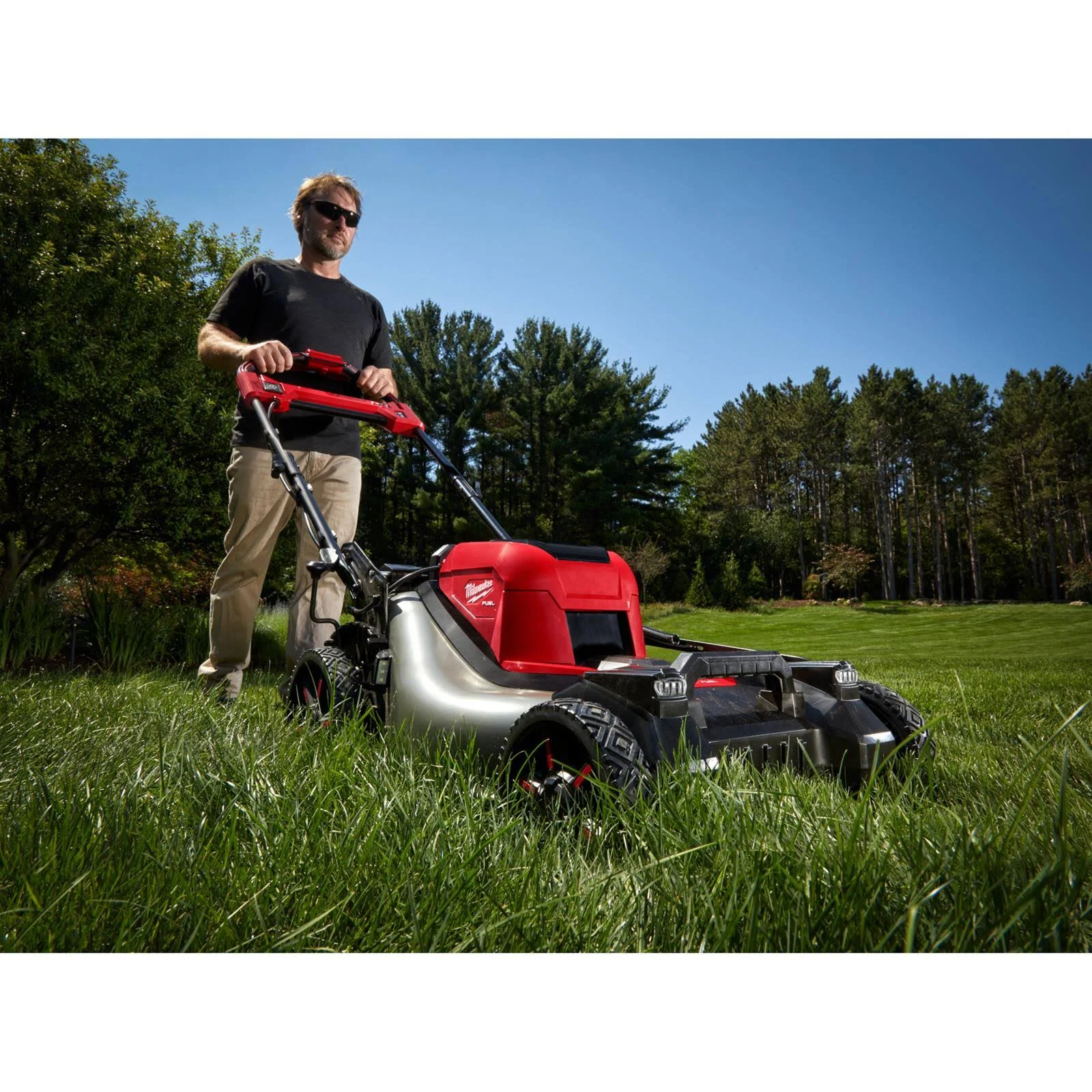

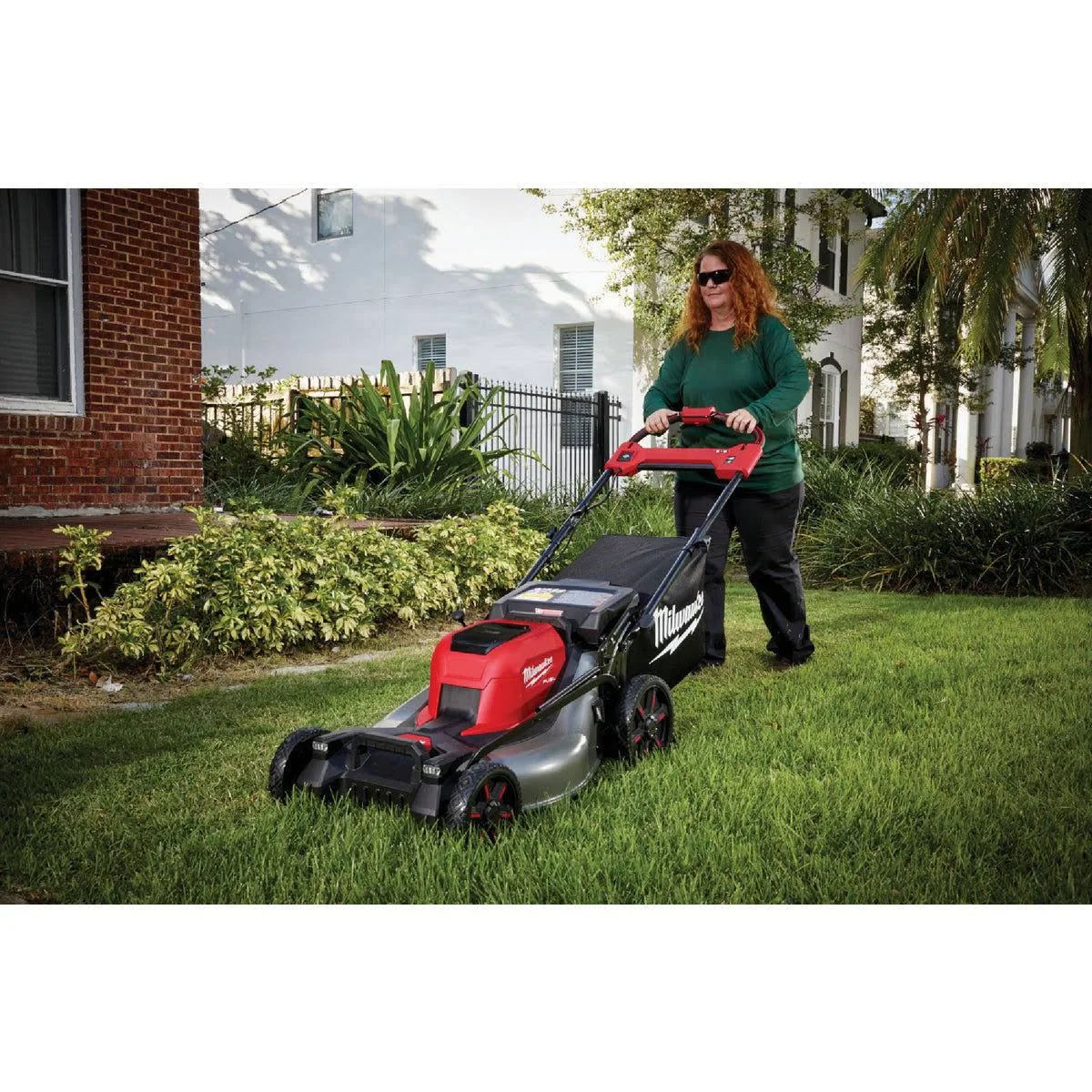

Milwaukee 2823-22HD M18 FUEL Self-Propelled Dual Battery Mower Kit

The Milwaukee 2823-22HD M18 FUEL 21-Inch Self-Propelled Dual Battery Mower Kit is engineered to meet the performance, durability, and ergonomic demands of professional landscape maintenance and serious residential users. Powered by a commercial-grade POWERSTATE brushless motor, this cordless electric mower delivers exceptional cutting power and generates more maximum torque than a 200cc gas engine to effortlessly tackle the thickest, most demanding grass conditions without bogging down. Featuring advanced REDLINK PLUS Intelligence, the tool ensures complete system communication between the mower and its batteries, optimizing performance and protecting the machinery against heavy workloads, overheating, and over-loading.

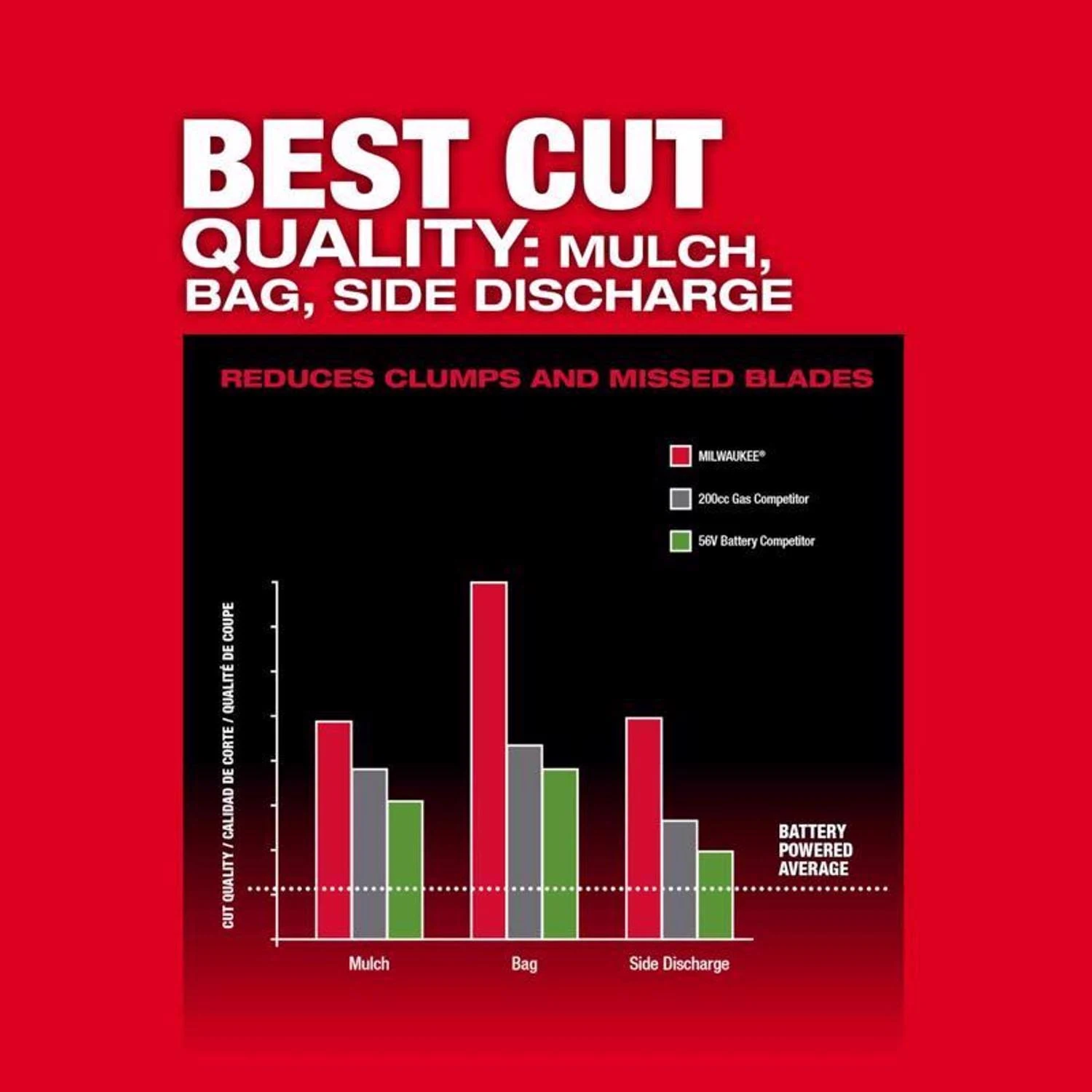

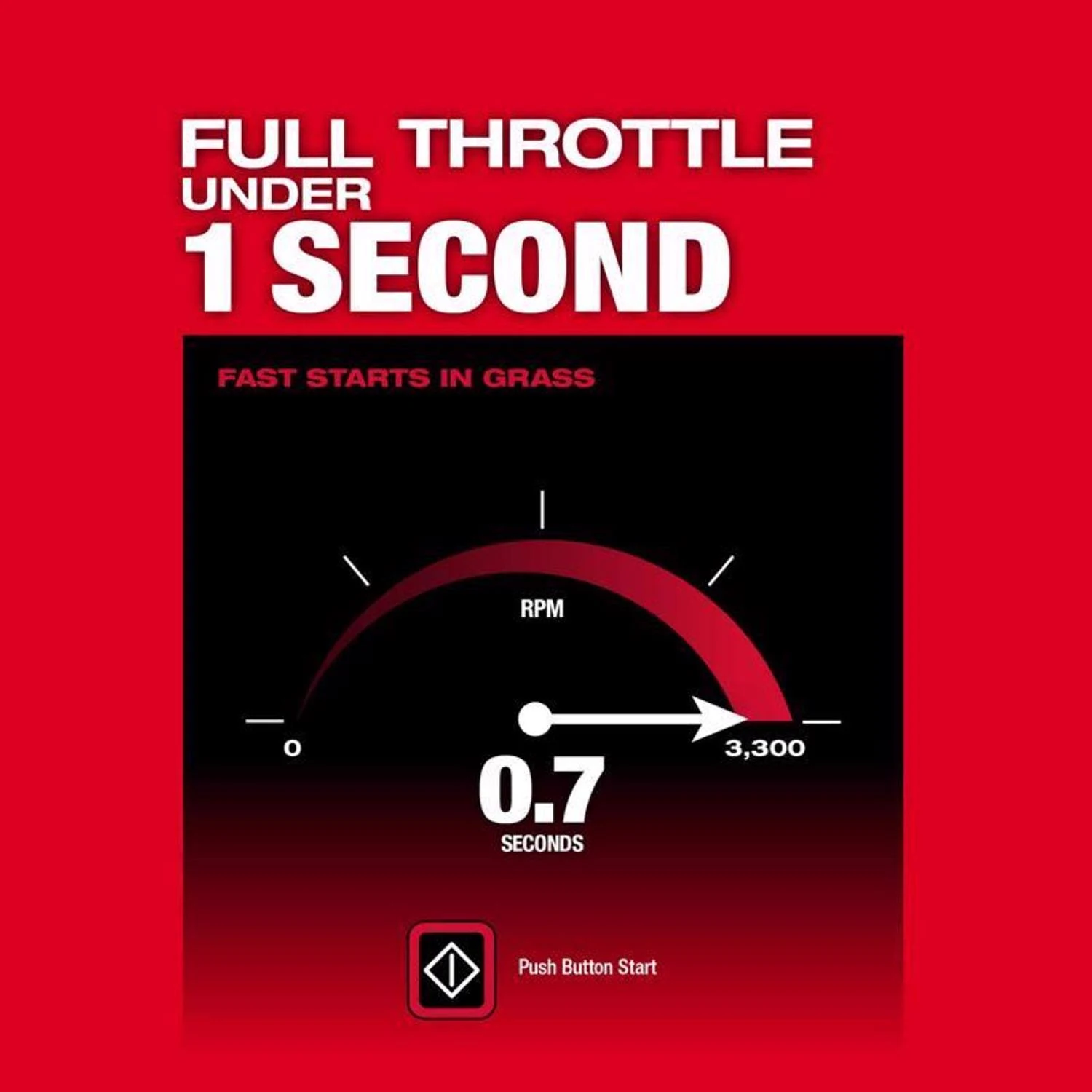

An advanced integrated electronic package provides an instant throttle response, allowing both the high-capacity blade and drive motors to reach full operating throttle in under one second. This eliminates gas pull-start frustrations and motor ramp-up lag for seamless control. Designed with an optimized 21-inch steel deck, the mower produces maximum airflow and increased vacuum lift, ensuring superior cut quality whether you choose to mulch, bag, or utilize the side discharge chute. The rear-wheel-drive self-propelled system features Active Speed Management Paddles, allowing users to naturally adapt the machine’s driving pace from 0 to 4 MPH to match their comfortable walking speed.

The comprehensive kit includes two M18 REDLITHIUM HIGH OUTPUT HD12.0 battery packs, which work in series to deliver a robust 36V nominal power output and up to 60 minutes of continuous runtime. This provides ample power to cut up to a 1/2 acre of grass per charge when traveling at a standard 3 MPH pace. For low-light operations, integrated front and side LED lights supply full 180-degree visibility. Constructed for extreme professional durability, the machine is equipped with dual heavy-duty deck handles for easy lifting during transport, a single-point height adjustment lever, and a specialized folding handle mechanism that allows for compact vertical storage.

Technical Specifications

• Model Number: 2823-22HD (Mower model: 2823-20)

• Cutting Deck Width: 21 inches

• Deck Material: Heavy-duty Steel

• Motor Type: POWERSTATE Brushless Motor

• System Electronics: REDLINK PLUS Intelligence

• Power Source: Cordless Battery (Requires two M18 batteries to operate simultaneously)

• Included Batteries: (2) M18 REDLITHIUM HIGH OUTPUT HD12.0 Battery Packs (12.0 Ah each)

• Voltage: 18V x 2 (Operates in series at 36V nominal / 40V maximum charge)

• Blade Speed: 2,800 RPM (Standard Mode) / 3,300 RPM (High Lift Mode)

• Throttle Response Time: Under 1 second

• Drive System: Rear-Wheel Self-Propelled

• Speed Range: 0 to 4 MPH variable speed

• Pace Control: Active Speed Management Paddles

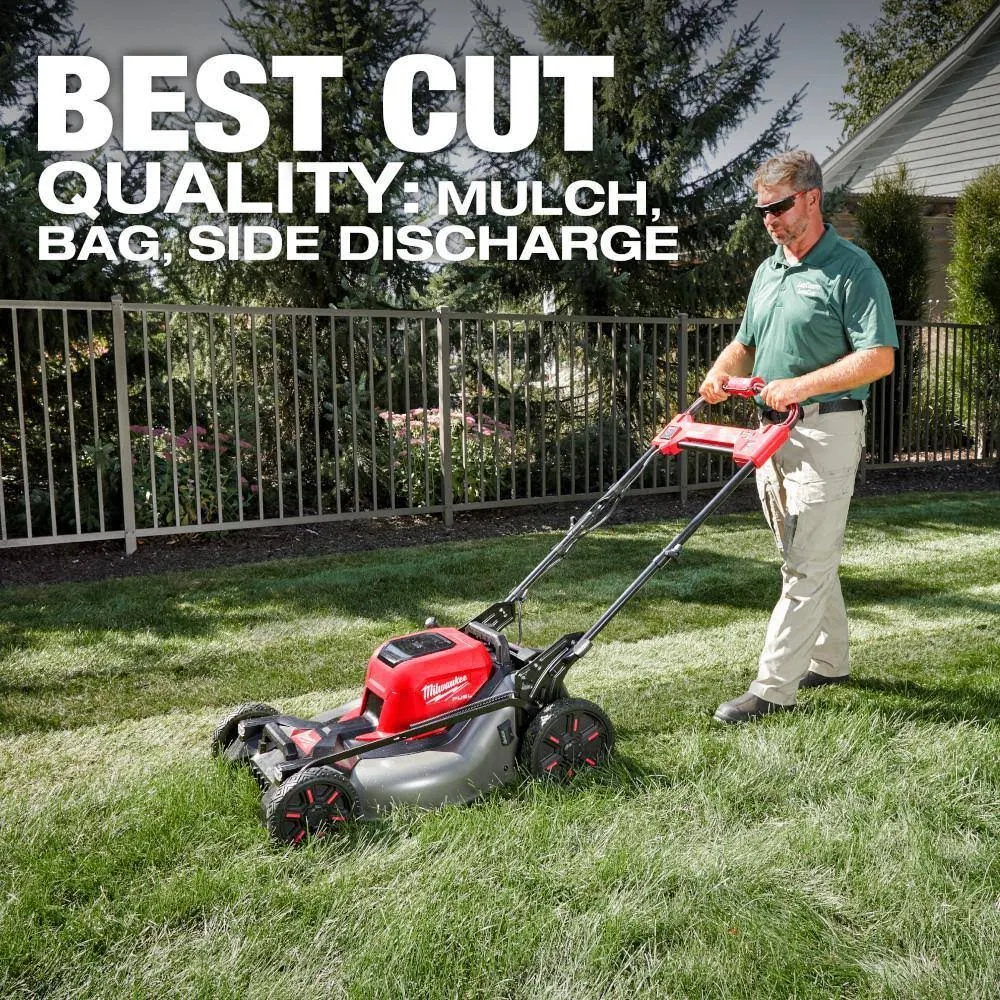

• Grass Management: 3-in-1 Capability (Mulch, Bag, and Rear Side Discharge)

• Cutting Height Range: 1 inch to 4 inches

• Height Adjustment: Single-Point Lever with 7 positions at 1/2-inch increments

• Visibility Lighting: High-intensity Front and Side LED Lights providing 180° coverage

• Handle Configuration: Ergonomic recessed bail bar with 3 adjustable height positions

• Storage Profile: Folding handles with dedicated vertical storage position

• Wheel Diameters: 8-inch front wheels, 10-inch rear wheels

• Total Weight (with Batteries Installed): 85 lbs

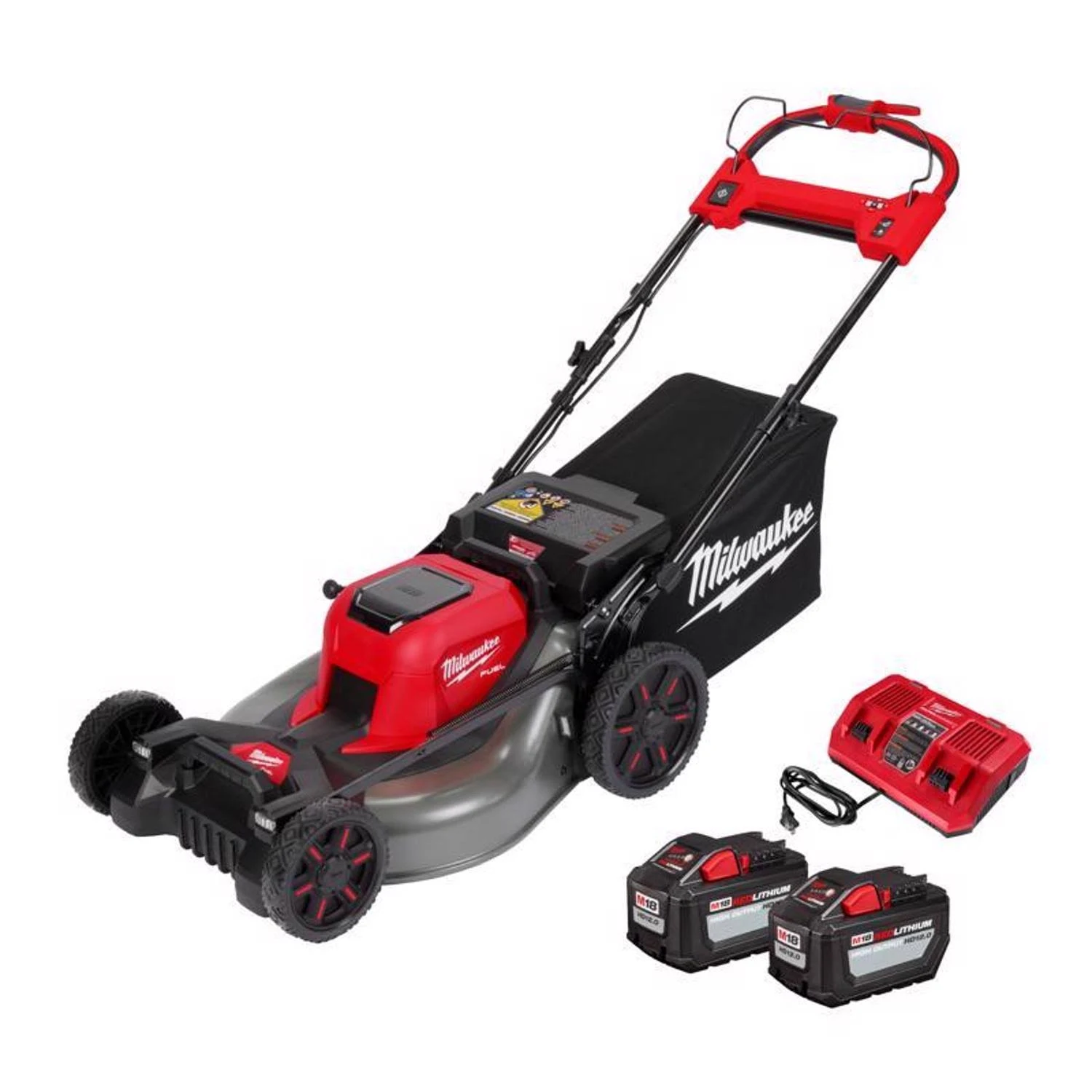

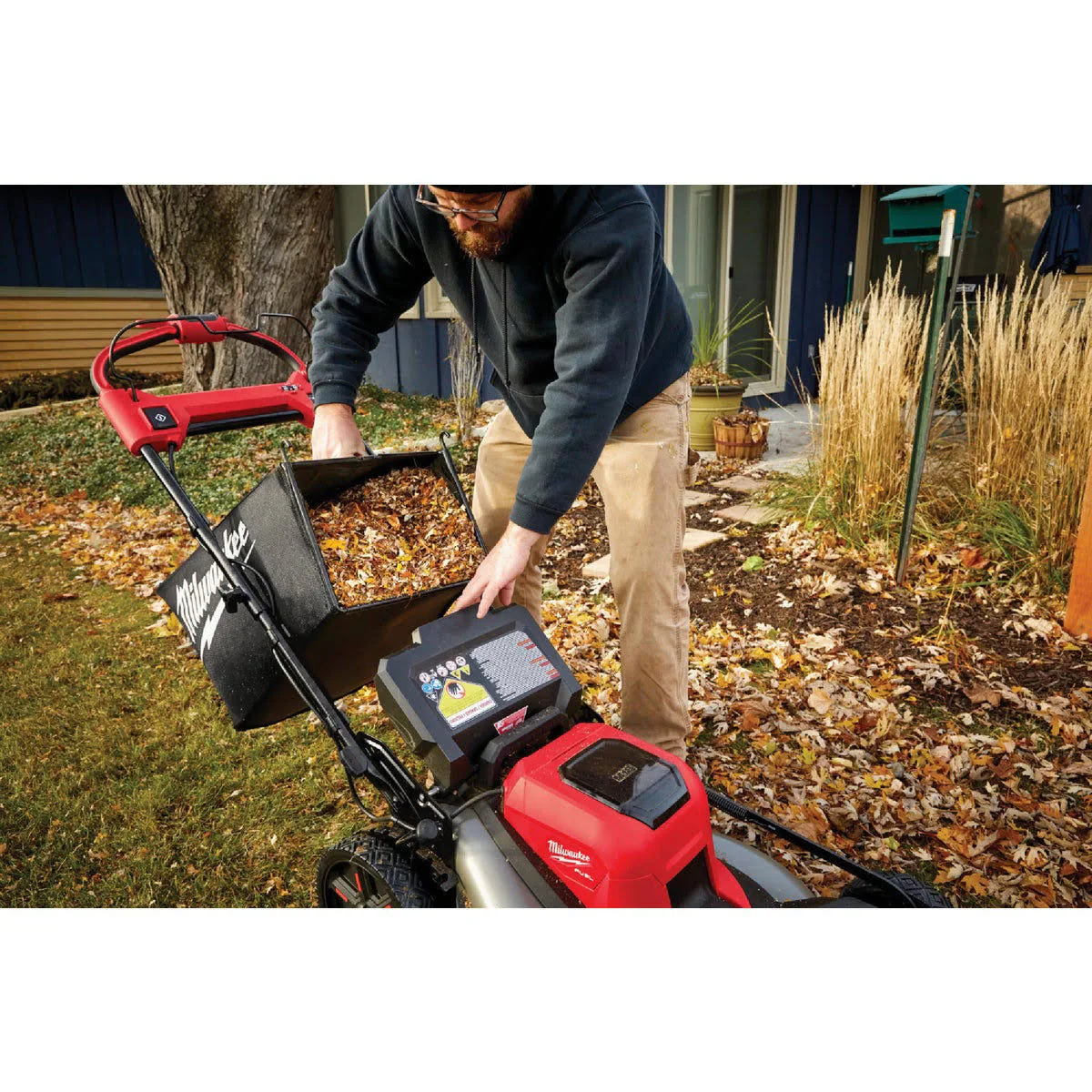

• Kit Package Contents: (1) 21″ Self-Propelled Mower, (2) HD12.0 Batteries, (1) M18 Dual-Bay Simultaneous Rapid Charger, (1) Grass Collection Bag, (1) Mulch Plug, (1) Rear Side Discharge Chute
