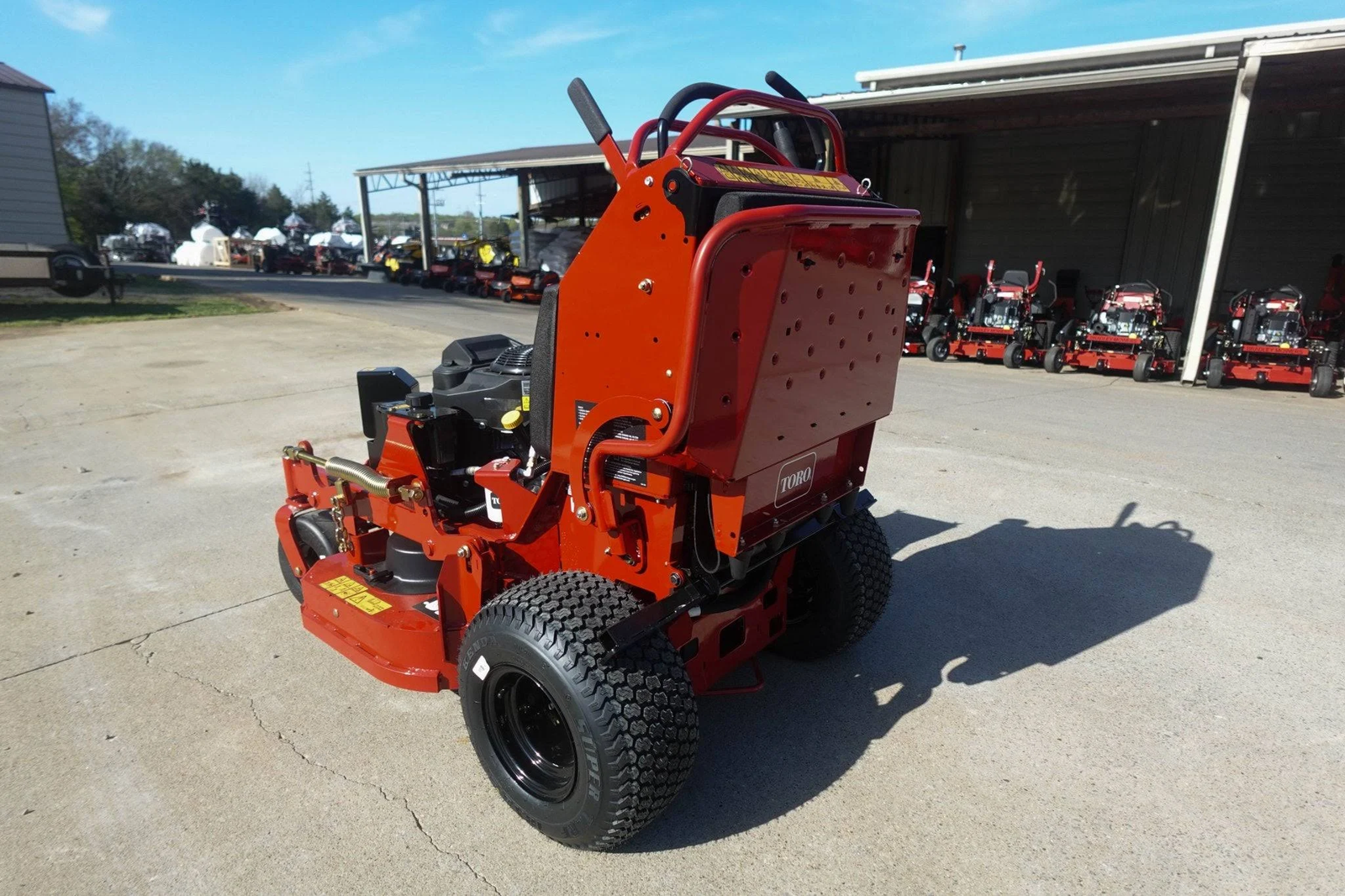

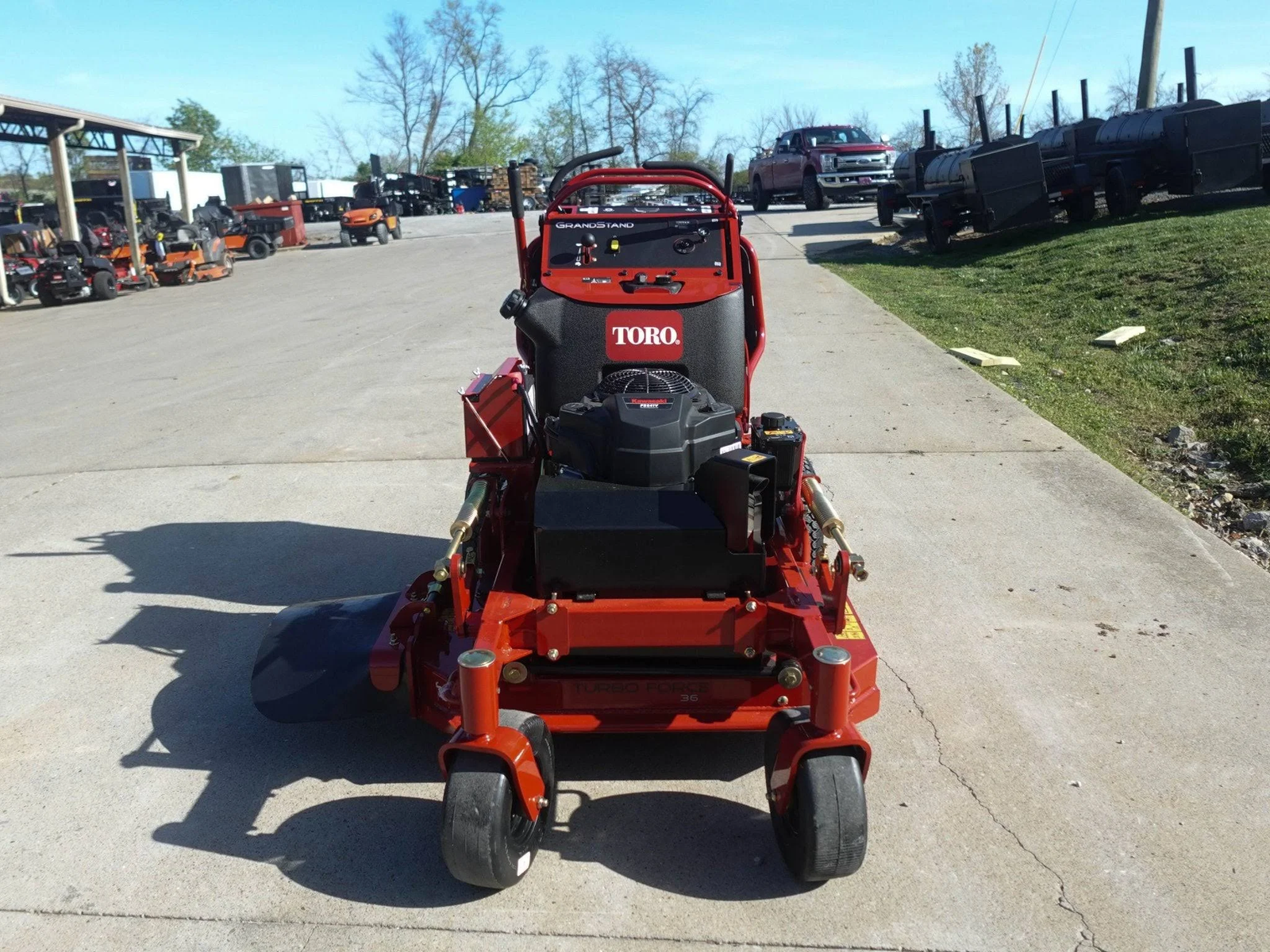

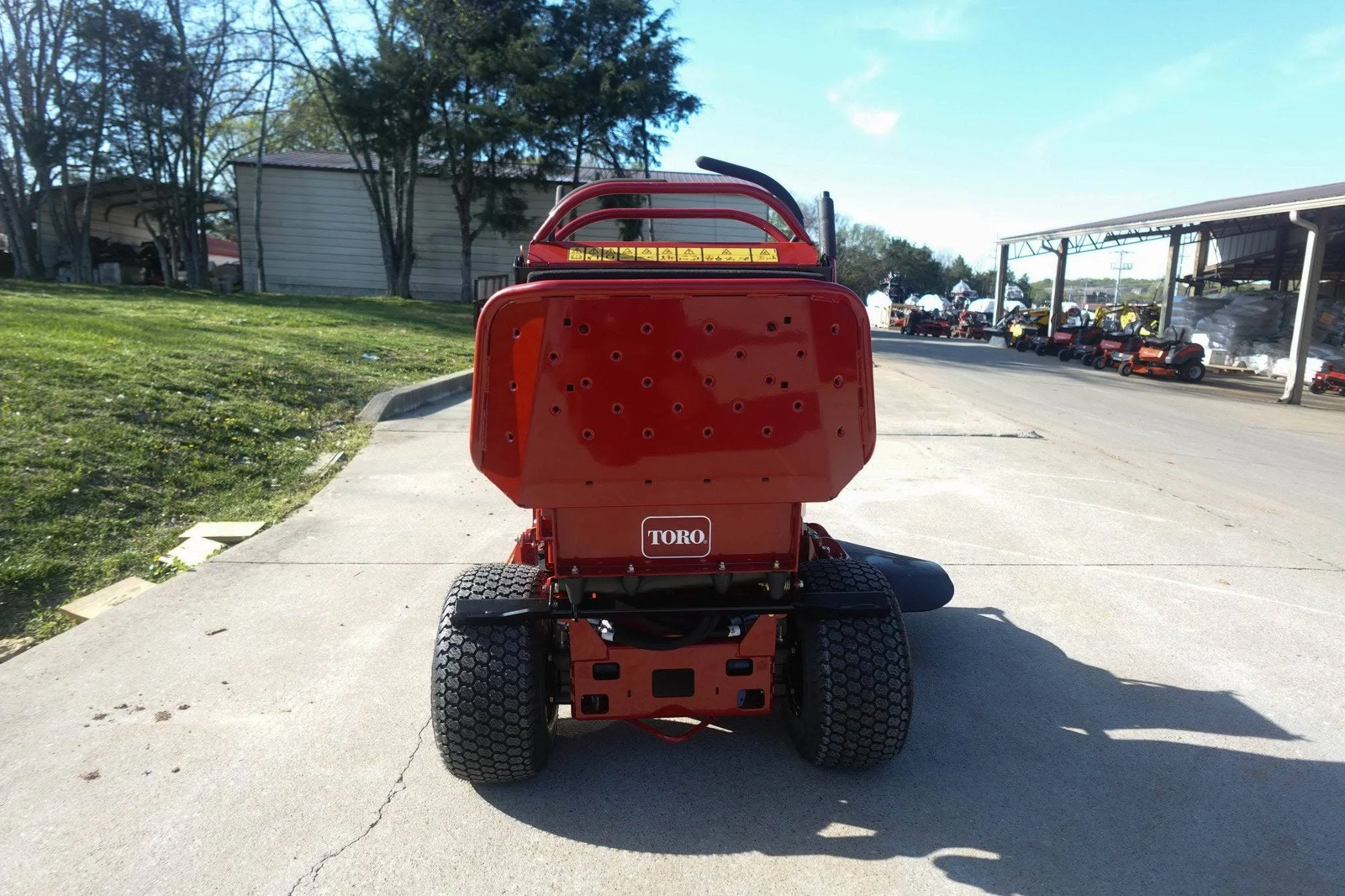

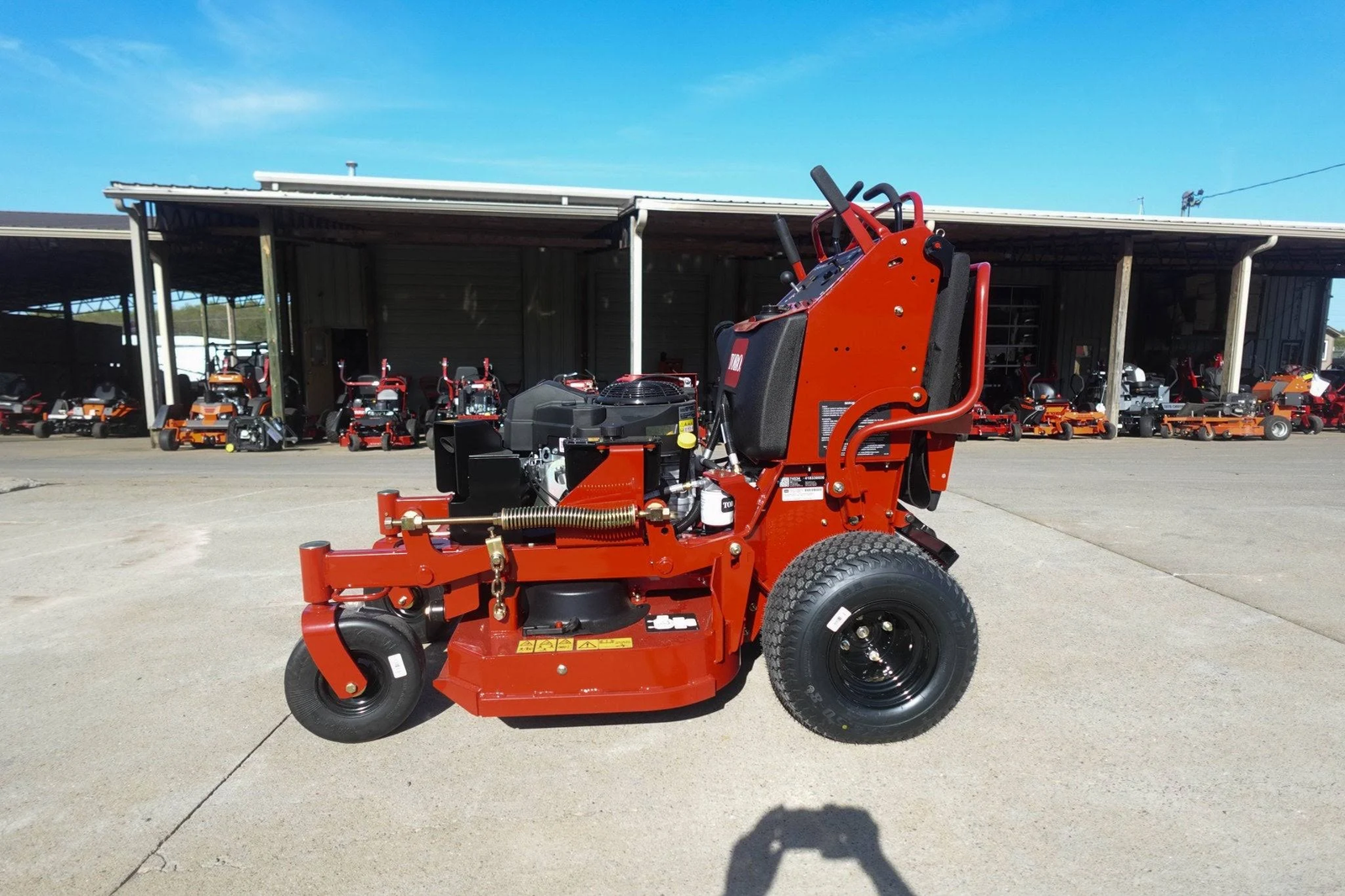

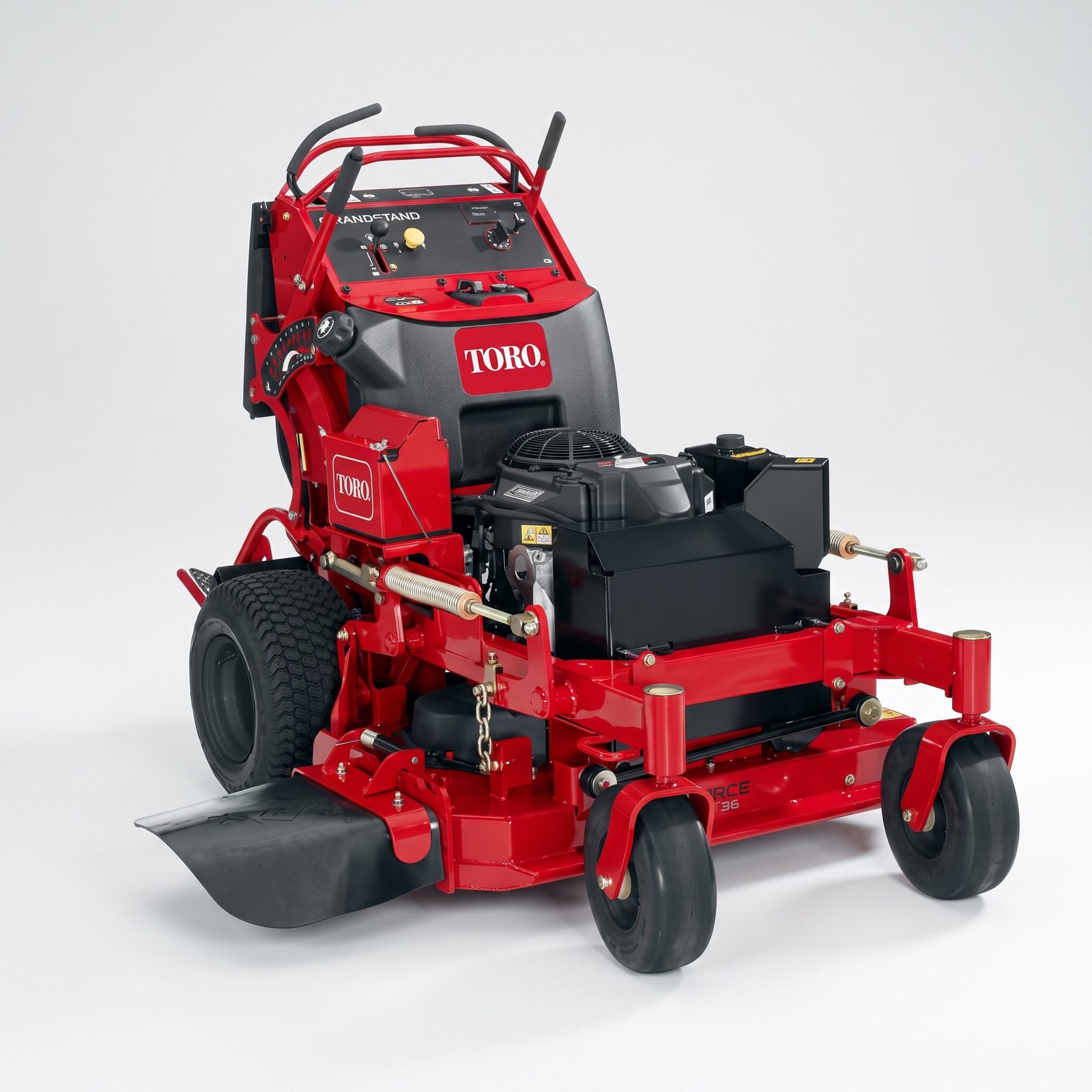

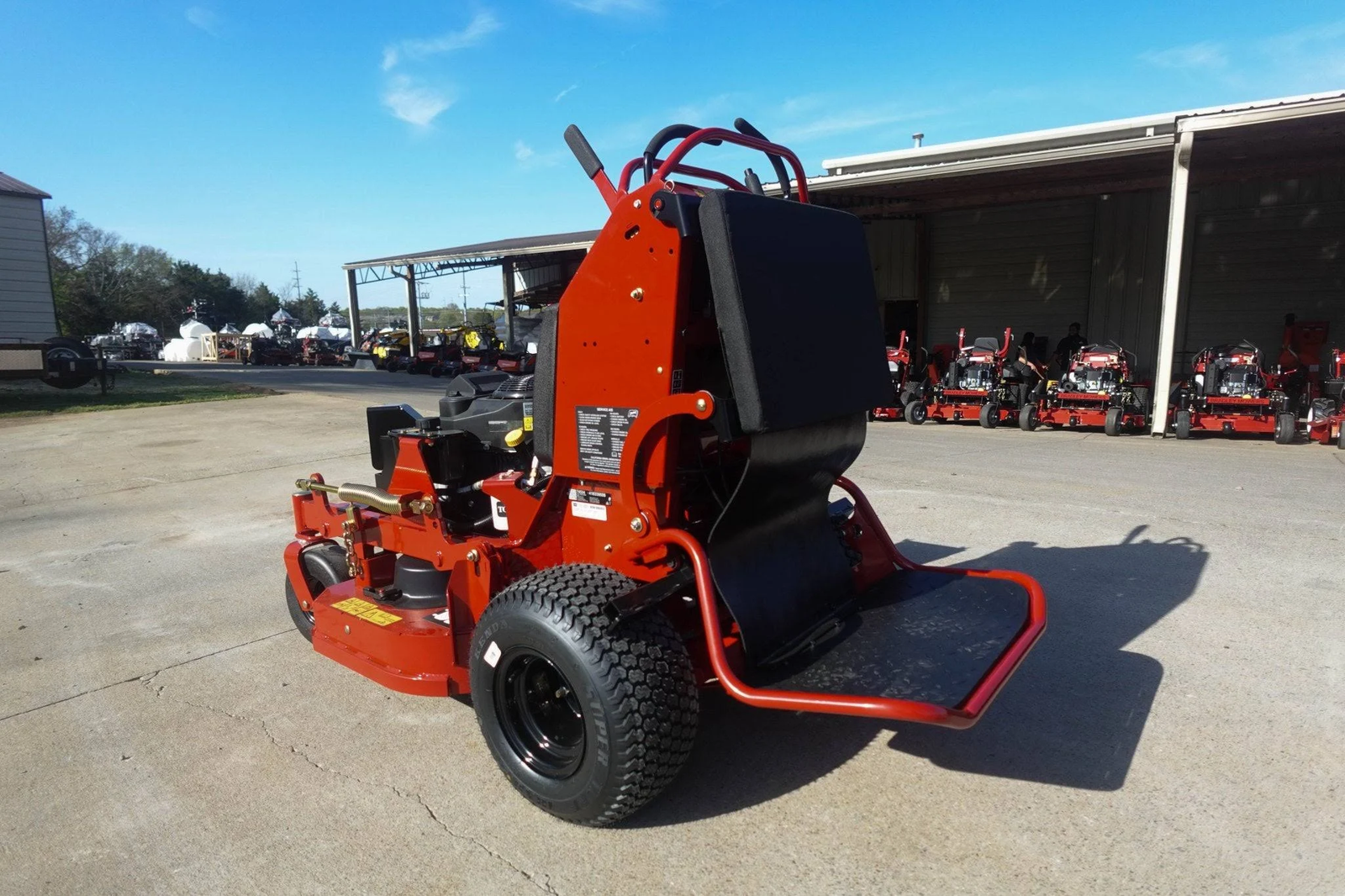

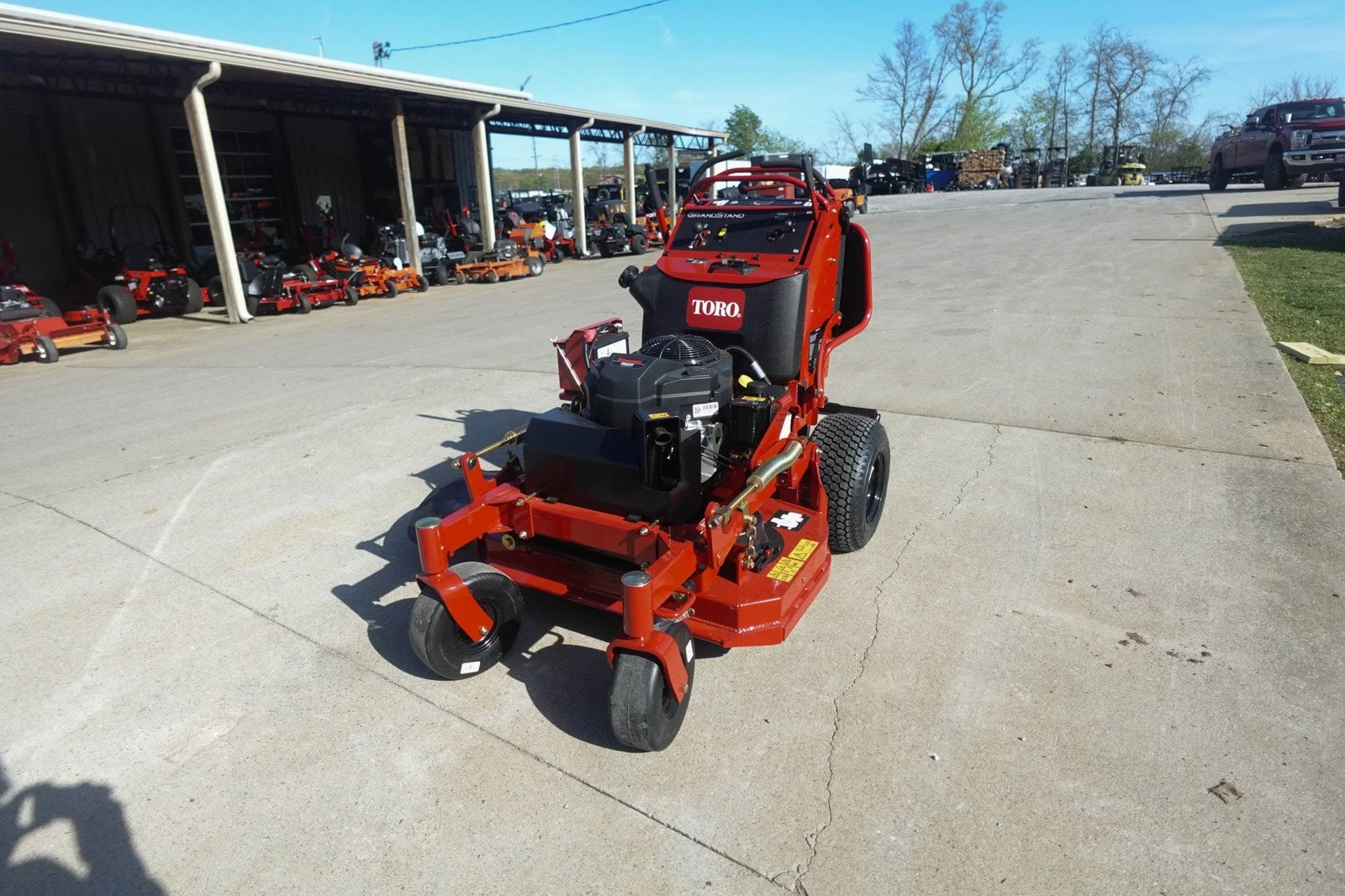

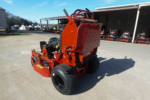

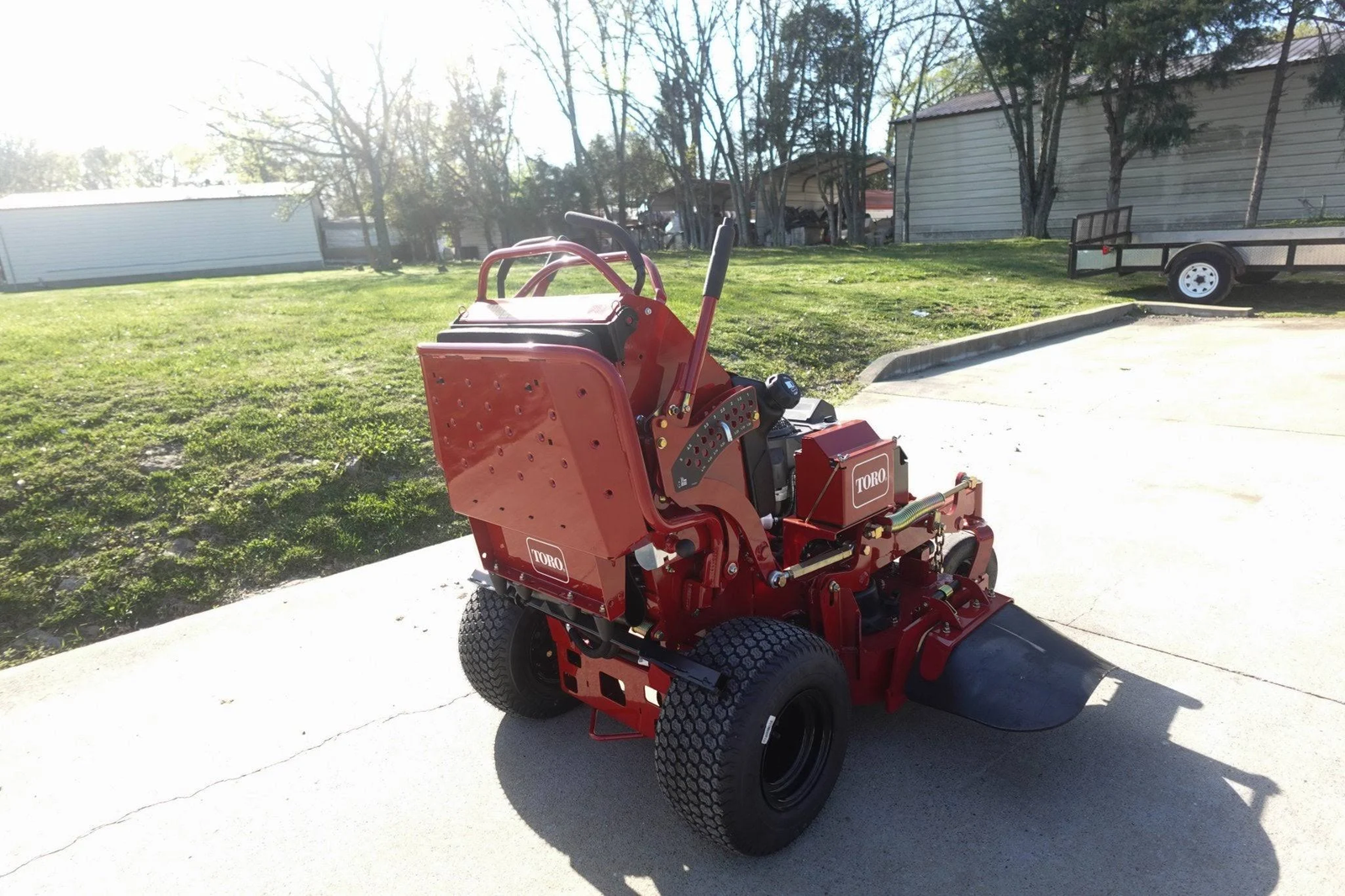

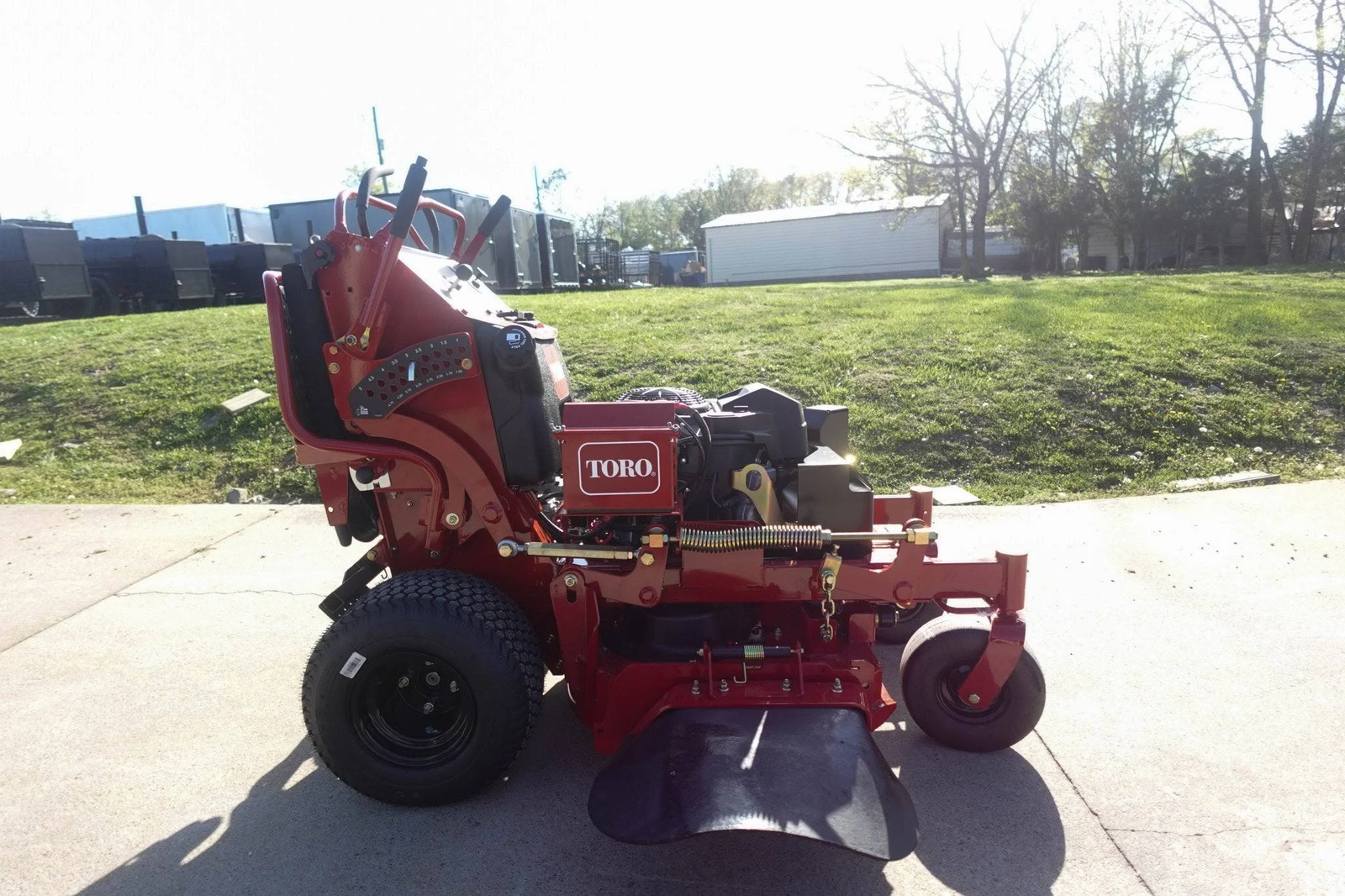

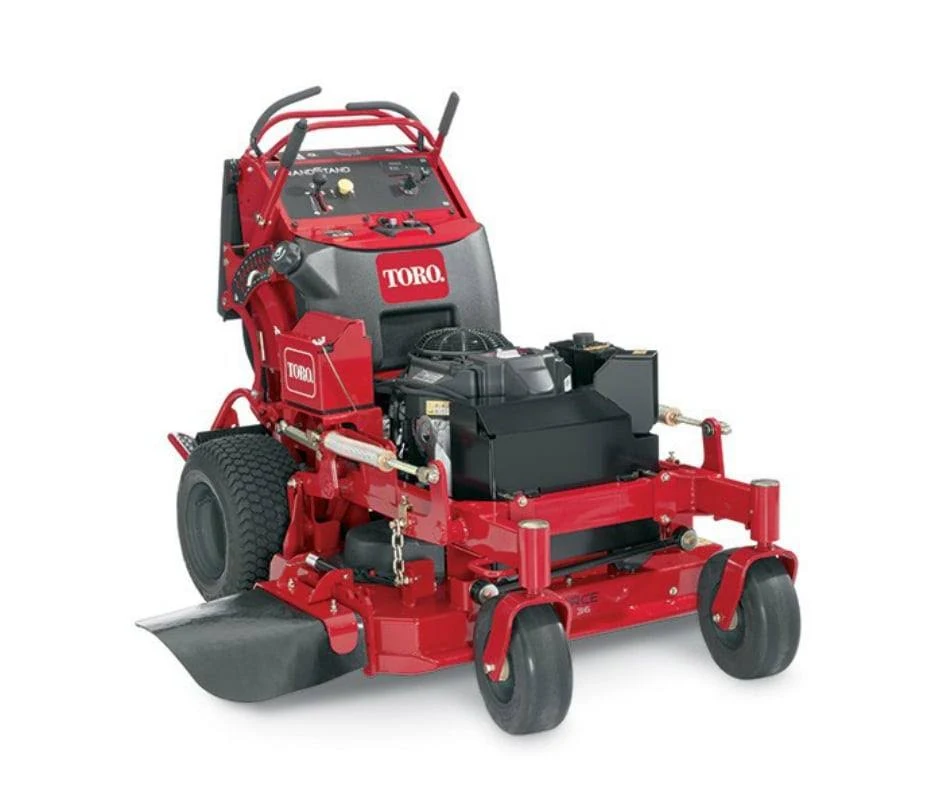

Toro GrandStand 74534 Stand On Mower 36″ 15hp Kawasaki

Product Description

The Toro GrandStand 74534 Stand-On Mower is a commercial-grade lawn mower designed to deliver the speed and comfort of a zero-turn rider alongside the maneuverability and on-and-off ease of a wide-area walk-behind. Built for professional landscapers and high-demand residential applications, this compact 36-inch machine navigates easily through narrow gates, tight spaces, and complex landscape layouts. Its design optimizes operator visibility, allowing for quick obstacle identification and seamless movement underneath overhanging tree branches.

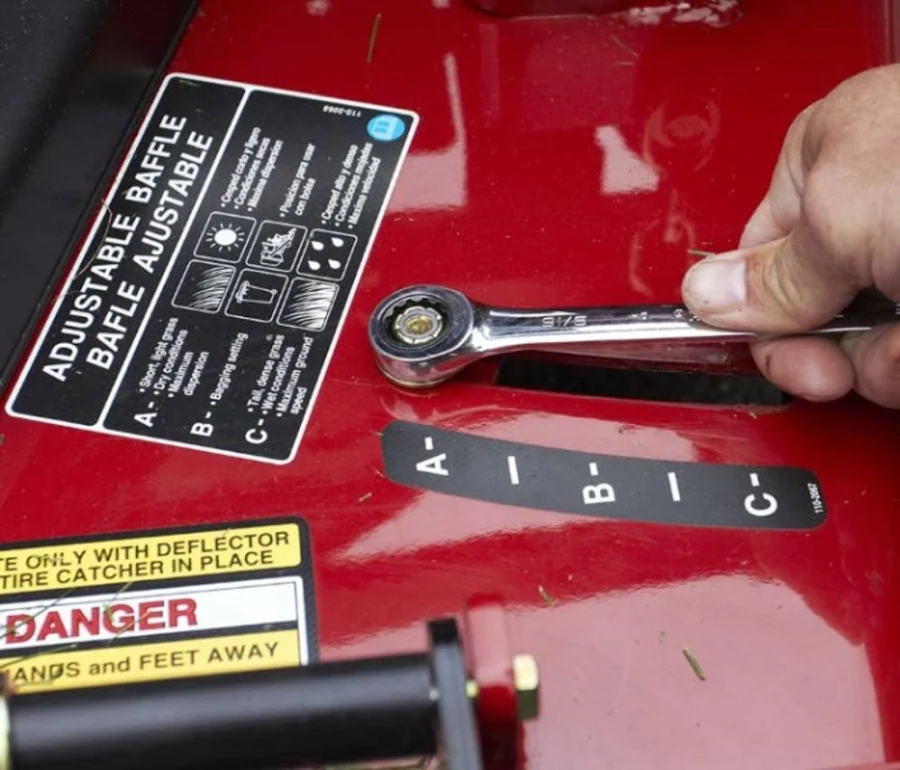

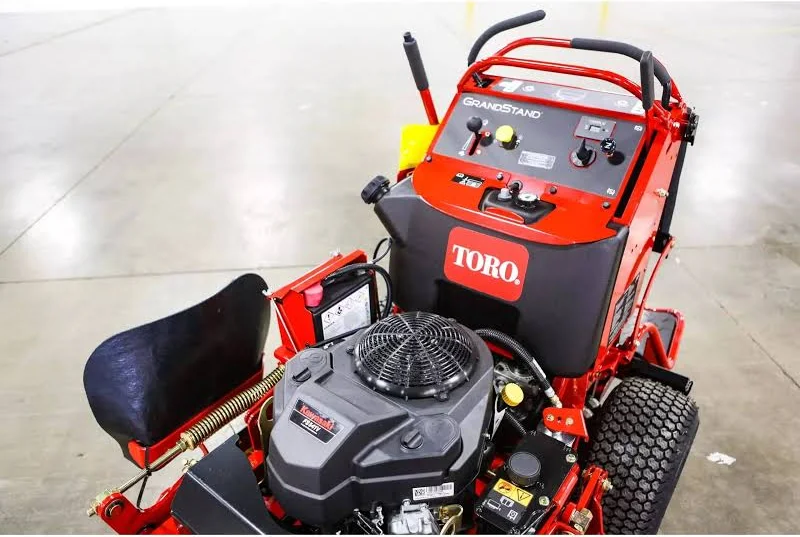

At the core of this mower is a 15-horsepower Kawasaki FS541V V-Twin engine, which provides consistent, heavy-duty cutting power and reliable fuel economy. The mower features an exclusive 7-gauge steel Turbo Force cutting deck equipped with a patented adjustable discharge baffle. This system allows operators to fine-tune the cutting chamber to conquer changing turf conditions, expanding the baffle in extreme conditions to conserve power or closing it for fine mulching velocity. The deck structure is heavily protected by a reinforced bull-nose front bumper that absorbs frontal impacts and minimizes the blowout of dust and debris.

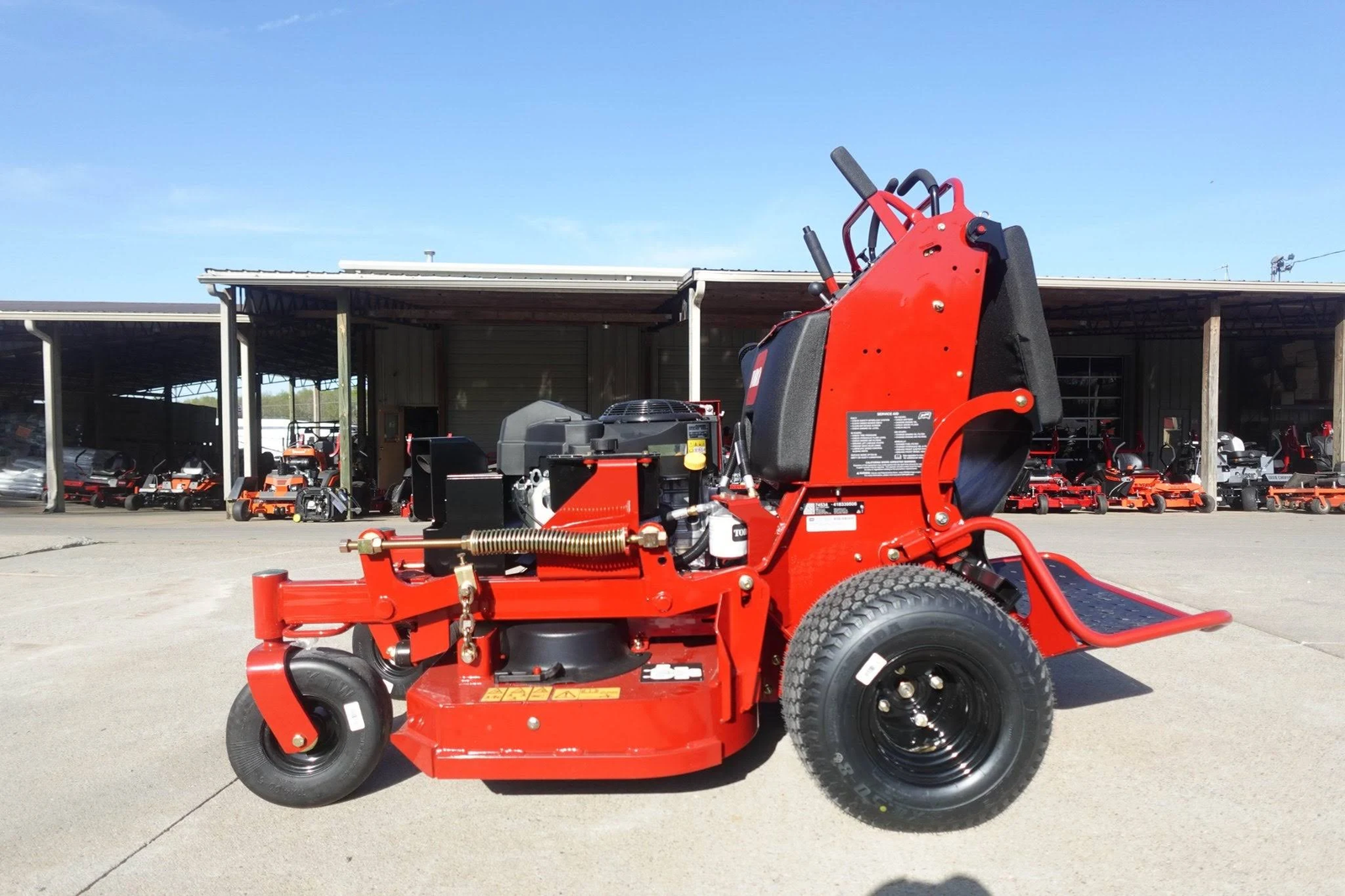

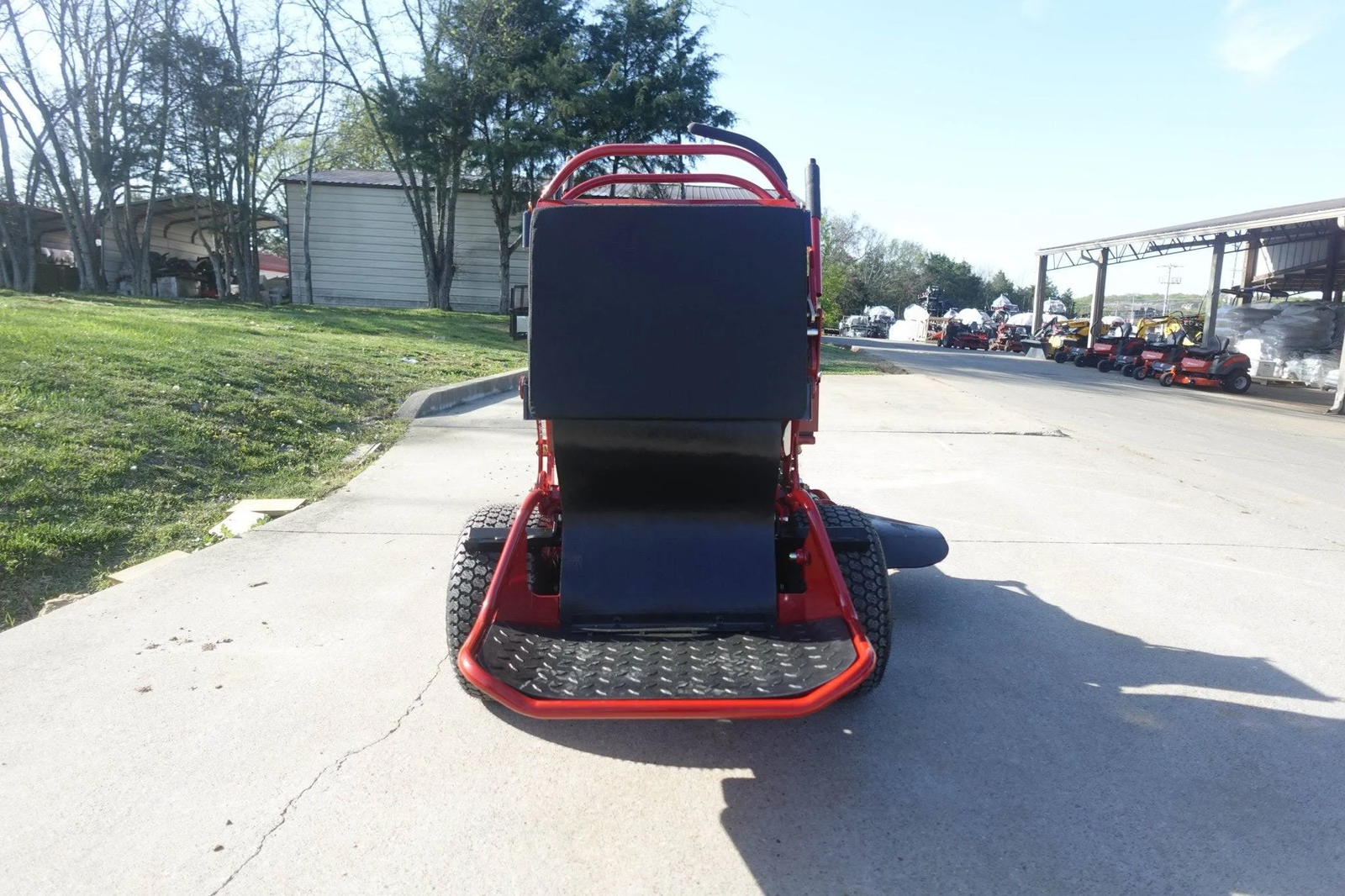

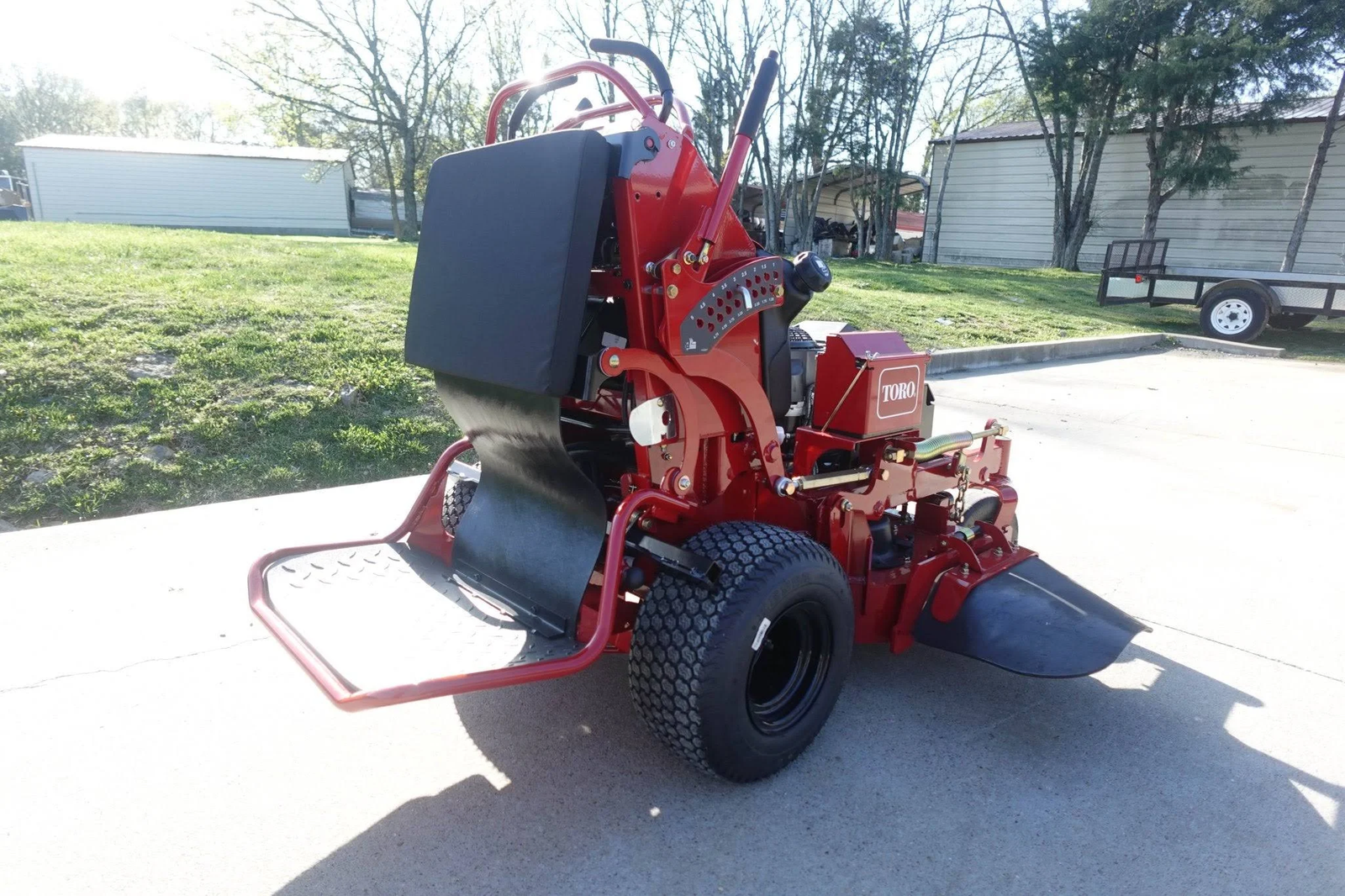

Operator comfort and utility are enhanced by the Flex-Ride platform suspension system, which dampens rough terrain impacts to significantly reduce fatigue during long working hours. The platform features a self-compensating suspension mechanism that automatically adjusts for operators of different sizes, alongside sloped sides to maintain a secure stance during hillside operation. For ultimate trailer space conservation and multi-use versatility, the operator platform instantly folds up to convert the machine into a walk-behind mower, reducing its transport footprint and eliminating the need to switch machines mid-job.

Technical Specifications

• Model Number: 74534

• Cutting Width: 36 inches (91 cm)

• Engine: 15 hp (11 kW) Kawasaki FS541V V-Twin

• Engine Displacement: 603 cc

• Fuel Type: Gasoline

• Fuel Capacity: 7.8 gallons (29.5 L)

• Deck Design: 7-Gauge Steel TURBO FORCE with Bull-Nose Bumper

• Height of Cut Range: 1.0 to 5.0 inches (2.5 to 12.7 cm)

• Blade Tip Speed: 18,500 ft/min (5,638 m/min)

• Number of Blades: 3

• Blade Material: 0.204 inch heat-treated steel

• Adjustable Discharge Baffle: Standard

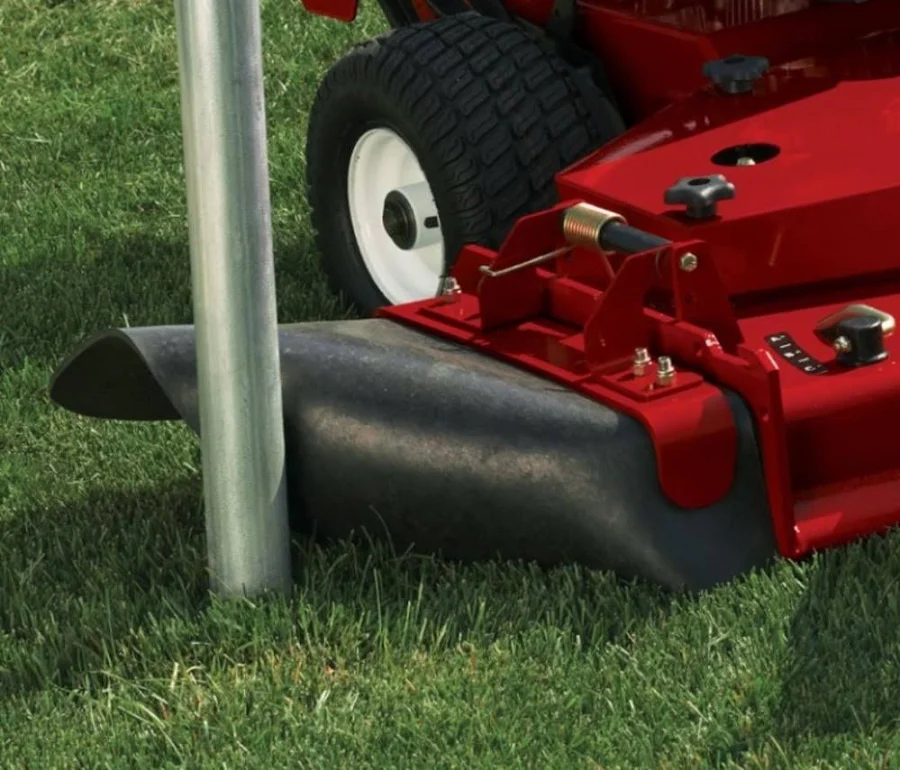

• Discharge Chute: High-performance flexible rubber

• Drive System: 10cc Hydro-Gear Pumps with 10 ci Wheel Motors

• Forward Ground Speed: Up to 8.0 mph (12.8 kph)

• Operator Platform: Foldable Flex-Ride Suspension Platform

• Steering Controls: Twin Lever Controls

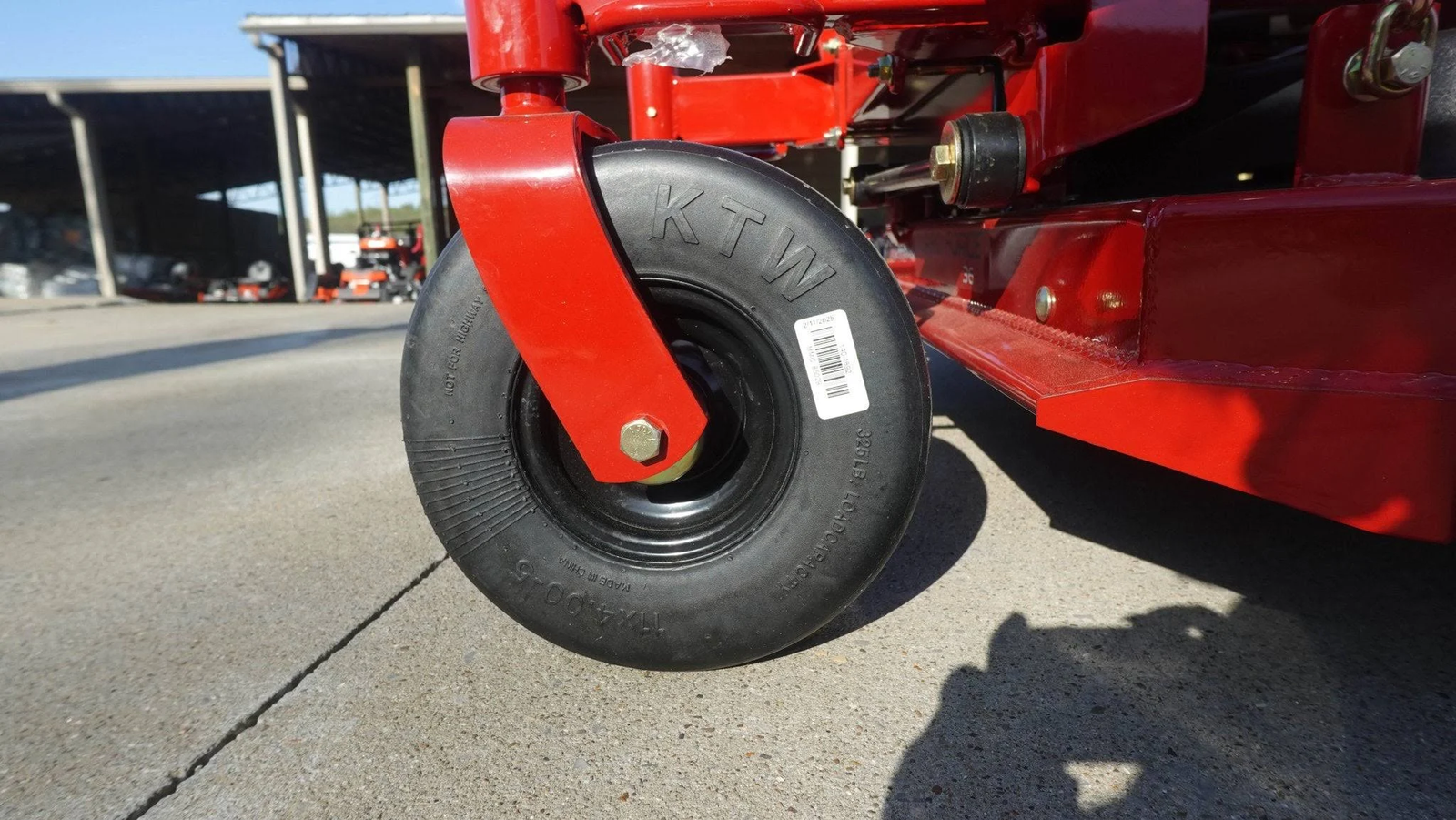

• Caster Tires: 11 in. x 4 in. – 5 in. Flat-Free Semi-Pneumatic

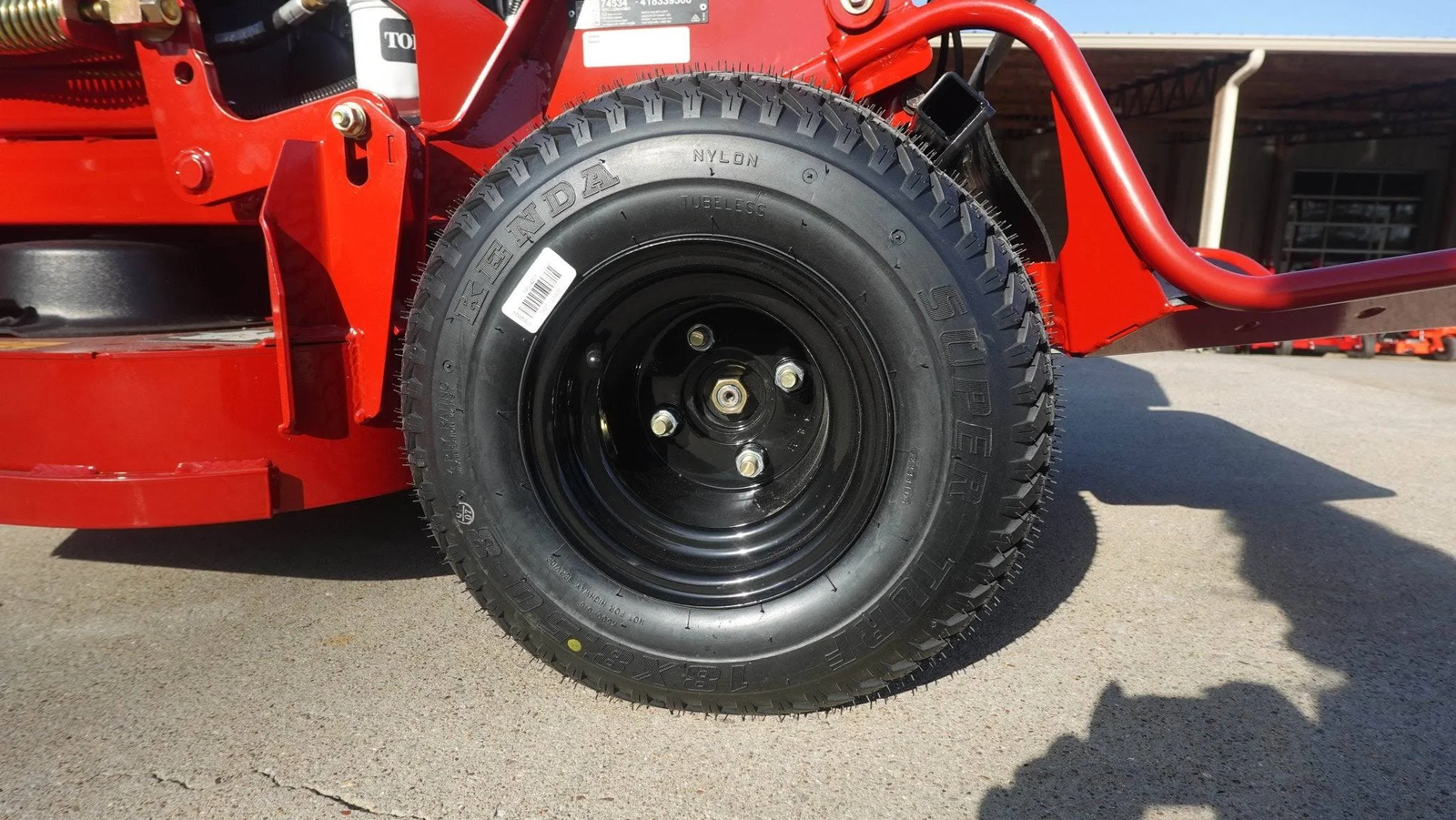

• Drive Tires: 18 in. x 8.5 in. – 8 in.

• Spindle Housing: 9.375-inch Diameter Cast Iron

• Spindle Bearings: Maintenance-free

• Clutch: Electromagnetic

• Start Type: Electric

• Hour Meter: Standard

• Carrier Frame: 3 in. x 1.5 in. x 12-gauge steel

• Weight: 837 lbs (379.7 kg)

• Box Dimensions: 77.25 in. x 49 in. x 52 in.
